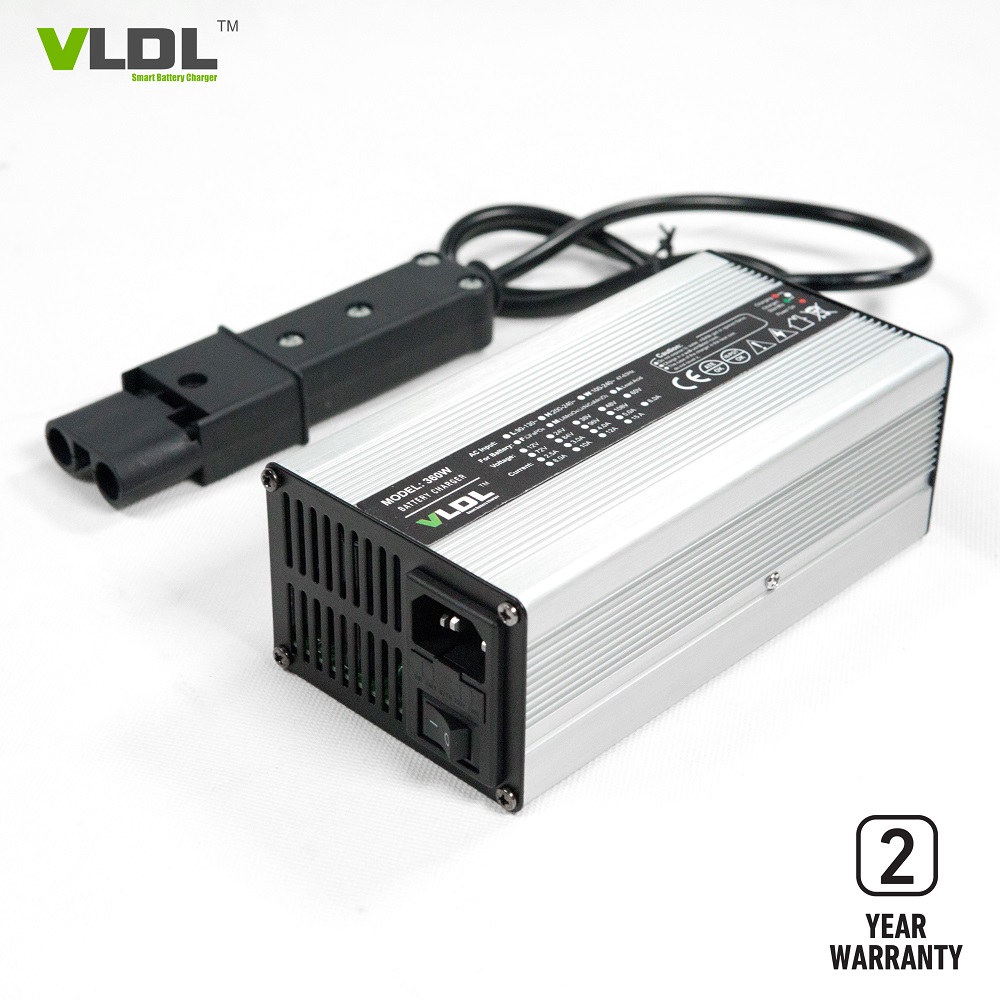

72V 3A lithium battery charger for EV, automatic CC CV charging
Descriptions:
Designed for 72V lithium ion battery powered Electric Motorcycles. Input 110 or 230Vac and rated output voltatge is 72V 3A. Smart max charging voltage is 87.6V for li-ion / LiFePO4 type batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.
Specifications:
AC input voltage: 110 / 240Vac
AC input freq.: 50 / 60 Hz
Rated output: 72V 3Amps
Max charging voltage: 87.6V
Dimensions(LxWxH): 170 x 90 x 63 mm
Net weight: 1.5 KG
Housing: Aluminum
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU contolled
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Applications:
Charging 72V Lithium Battery Powerd Electric Motorcycles / Scooters.
Input Plug & Output Connector:
We supply different plugs and connecotor by customer's applications.
Features:
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Input 110 / 230Vac, 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
| Output series: 360W Size: 170×90×63 mm Net weight: 1.3 KG |
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
| AC Input: 110 / 230V Frequency: 47~63HZ | VL1220L | 12V LiFePO4 Battery | | 14.6V | 20A | CC5~8% |
| VL1220 | 12V Lead-acid Battery | 13.5V | 14.7V | 20A | CC20% |
| VL2412LM | 24V Li-MnO2 Battery | | 29.4V | 12A | CC5~8% |
| VL2412L | 24V LiFePO4 Battery | | 29.2V | 12A | CC5~8% |
| VL2412 | 24V Lead-acid Battery | 27.6V | 29.4V | 12A | CC20% |
| VL3608LM | 36V Li-MnO2 Battery | | 42V | 8A | CC5~8% |
| VL3608L | 36V LiFePO4 Battery | | 43.8V | 8A | CC5~8% |
| VL3608 | 36V Lead-acid Battery | 41.4V | 44.1V | 8A | CC20% |
| VL4805LM | 48V Li-MnO2 Battery | | 54.6V | 5A | CC5~8% |
| VL4805L | 48V LiFePO4 Battery | | 43.8V | 5A | CC5~8% |
| VL4805 | 48V Lead-acid Battery | 55.2V | 58.8V | 5A | CC20% |
| VL6004L | 60V LiFePO4 Battery | | 73V | 4A | CC5~8% |
| VL6004 | 60V Lead-acid Battery | 67.5V | 73.5V | 4A | CC20% |
| VL7203L | 72V LiFePO4 Battery | | 87.6V | 3A | CC5~8% |
| VL7203 | 72V Lead-acid Battery | 81V | 88.2V | 3A | CC20% |
| Note: customized input / output / plug type / connectors are available. |
Product Tags:
|
|

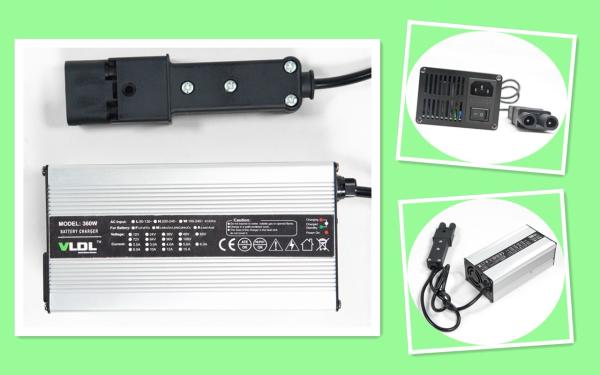

72V 3A Portable Lithium EV Battery Charger / Li Ion Smart Charger Images
|
